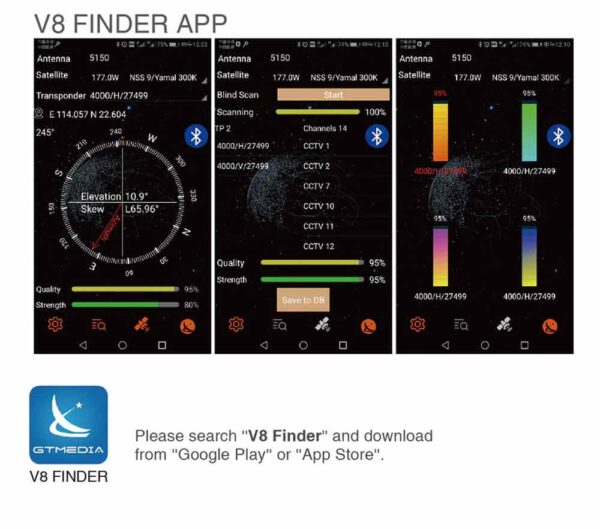

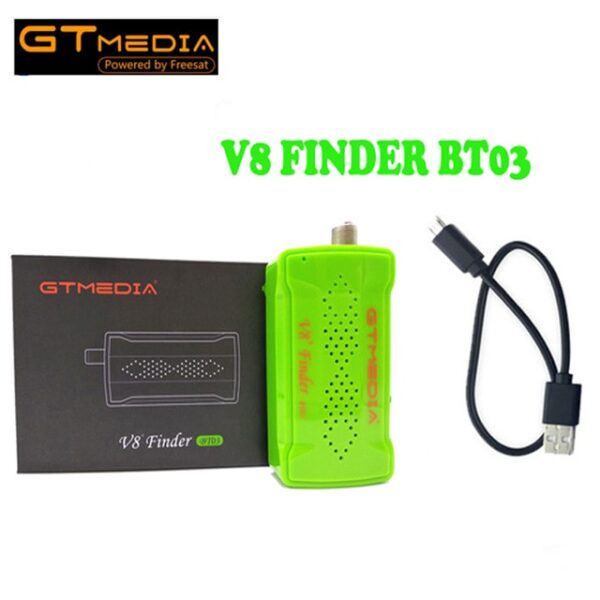

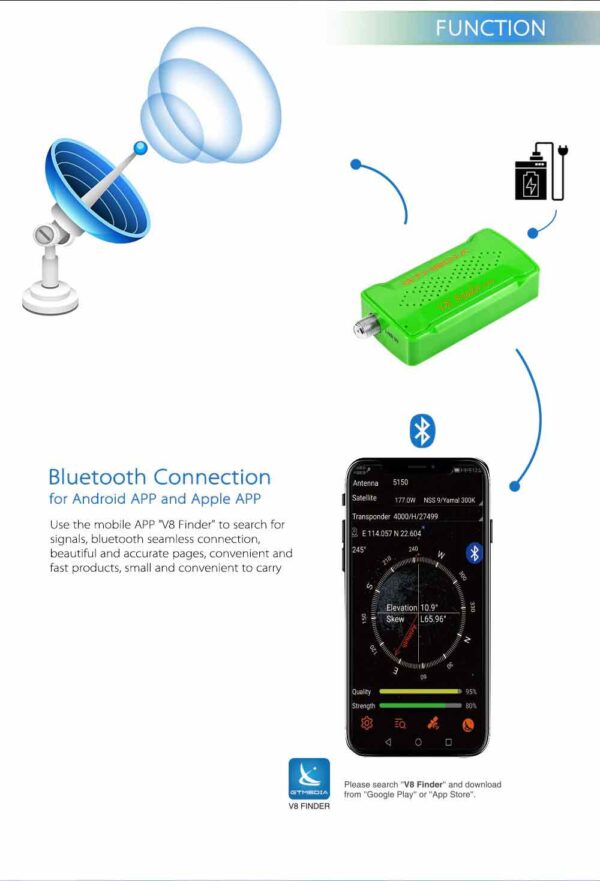

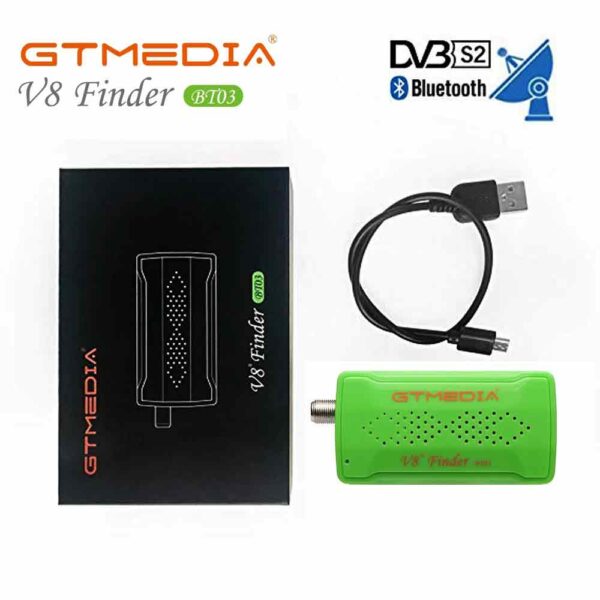

Description GTMEDIA V8 Finder BT03 Mini Satfinder Bluetooth DVB-S2 Satellite Finder Meter With Android System Highlight You can search for “V8 FINDER” in the APP Store and google player to download the app. 1. DVB Finder DVB-S2 Multi standard demodulation & decoding 2.Bluetooth connection for Android APP and Apple APP 3.Support full satellite selection. Main Feature Hardware Flash Memory 32MB Serial Flash DDR2 Memory 512M Bits LED Indicator Blue（Flashing:Not connected, Normally on: connected) Rear Panel LNB IN (Frequency Range950MHz to 2150MHz DVB-S/S2) micro USB : ≥DC 5V 1.5A System introduction DVB-S2 DVB-S/S2 system standard:ETS 302 307(SCPC and MCPC receivable from C/Ku band satellite) DiSEqC1.0support, 13/18V DC @ 350mA MAX,Overload Protection, 0/22K Multi standard demodulation & decoding DVB-S2 CCM,QPSK 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK 3/4, 4/5, 5/6, 8/9, 9/10 Legacy DVB-S,QPSK 1/2, 2/3, 3/4, 5/6, 7/8 VCM mode supported Dummy frame insertion supported Automatic standard recognition Support 1 to 60Mbaud symbol rates Fast channel blind scan for RF frequency & symbol rate acquisition High performance equalizer, canceling echo introduced by front end Simple AGC – Tuner interface Build in DC cancellers to remove DC component IQ imbalance compensator Automatic roll-off factor (0.35/0.25/0.20) detection Automatic spectrum inversion Signal quality and statistic, allowing improved monitoring and debug DiSEqCTM v2.2 modulation output for full control of LNB and satellite antenna Packing Product Dimension 42*95*15 MM Packaged Size 118*80*35MM Carton Size 370*366*282MM (90pcs/ctn) Unit Weight 0.12 Kg with gift box Carton Qty&Weight 90 pcs/Carton, 9.5 kgs Accessories DVB Finder BOX*1, MINI USB cable*1 Physicals Temperature Operation 0～ 45℃; Storage -10~ 60℃ Humidity 20~90%, non-condensed GTMEDIA V8 Finder BT03 Mini Satfinder Bluetooth DVB-S2 Satellite Finder Meter With Android System GTMEDIA V8 Finder BT03 Satellite Finder Meter DVB-S2 Finder
| Brands | |
|---|---|
| Color | |
| Special Filters |
| Power Input | 100 – 240V ̴ 50/60 Hz |
| Signal-to-Noise Ratio | > 80dB |
| Output power (W) | 100W RMS (IEC60268) |
| Dynamic frequency response range (Hz) | 40Hz – 20kHz (-6dB) |
| Frequency Response | 40Hz – 20kHz (-6dB) |
| Transducer | 1 x 5.25 inch (135mm) woofers, 2 x 1 inch (25mm) Dome tweeters |
| Dimensions (Width x Height x Depth) (cm) | 32.0 x 33.9 x 26.3 |
| Dimensions (Width x Height x Depth) (in) | 12.58 x 13.33 x 10.35 |
| Weight (kgs) | 6.4 |
| Weight (lbs) | 14.11 |
| Aux-In | 370 mV RMS (3.5mm connector) |
| Mic-In | 20 mV RMS |
| Guitar-In | 100 mV RMS |
| Bluetooth Input (dBFS) | -9 |
| USB Input (dBFS) | -9 |
| USB Format | FAT16, FAT32 |
| Bluetooth Profile | A2DP V1.4, AVRCP V1.6(SW), TMAP1.0, PBP1.0 |
| Bluetooth Transmitter Frequency Range (GHz) | 2.402GHZ~2.480 |
| Bluetooth Transmitter Modulation | GFSK, π/4 DQPSK, 8DPSK ,BLE1M, BLE2M |
| Bluetooth Transmitter Power | ≤ 16 dBm (EIRP) |
| Bluetooth version | 5.4 |
| Charging time (hours from empty) | < 3.5 |
| Cabel Type | AC power cable (type varies by regions) |
| Cable Length (ft) | 6.6 |
| Cable Length (m) | 2 |
| Battery Type | JBL Battery 200, Li-ion Battery(7.4V/4722mah) |
| Battery Charge Time (hours) | 3.5 |
| Maximum music playing time (hrs) | 15 |
