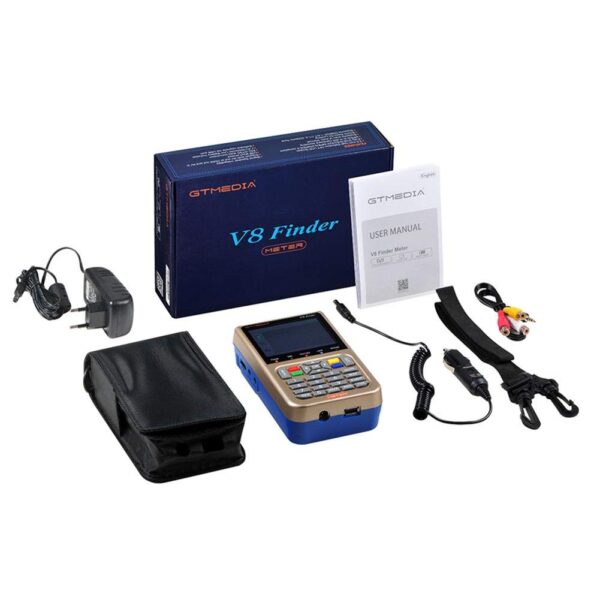

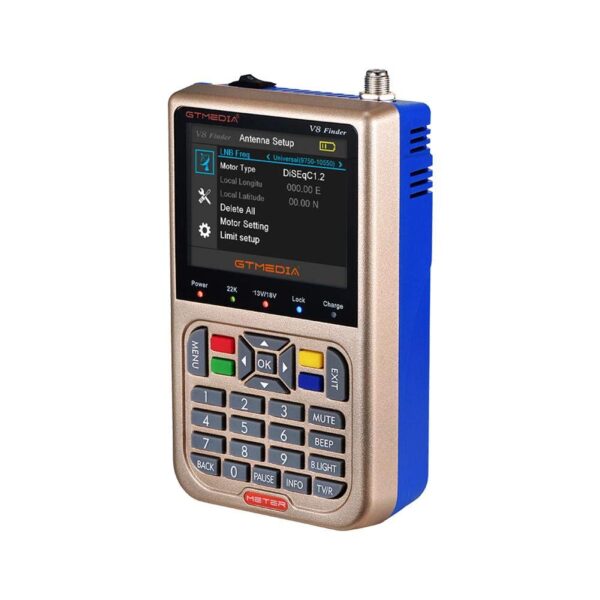

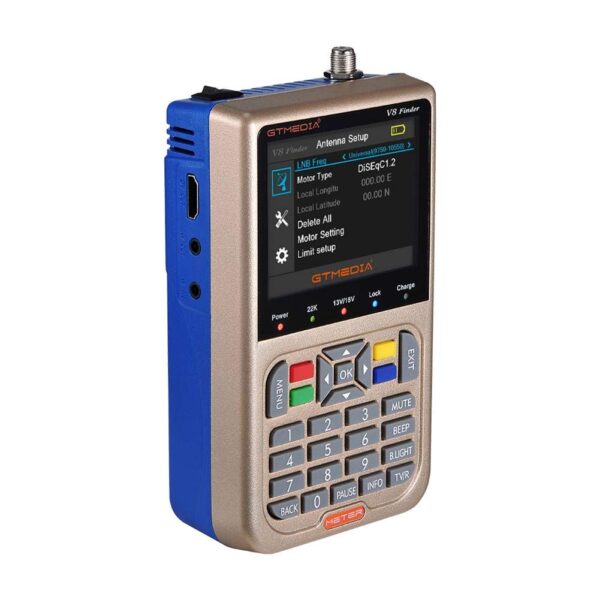

Description GTMEDIA Freesat V8 Digital Satellite Finder Meter Spectrum TV Signal Finder Meter DVB-S/S2/S2X HD Digital Signal Detector FTA 1080P HD MPEG-2 MPEG-4 3.5inch LCD Receiver *Equipped with 3.5-inch high definition TFT LCD screen. *Fully DVB-S/S2/S2X, MPEG-2/MPEG-4 compliant. Supports MPEG-2 / H.265 hardware decoding. *Support 13V / 18V / LOCK status panel LED display directly. *Li-ion battery (7.4V / 3000mAh) enables up to 4-hour operating time. *Support both AV out or HD out and AV in. Software upgrade via US Product description Highlights: *Digital meter for quick adjustment and installation of dishes. *Constellation analyzer and spectrum analyzer. *Supports scan of Auto, Preset, Accurate. *Sound and Light Alarm for locking signal. *Auto Calculate Angle of AZ ,EL. *Supports DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz Tone. *PAL/NTSC: PAL-NTSC auto-conversion and 4:3 or 16:9 display form. *LNB short circuit protection. *OSD Language: English, German, French, Portuguese, Spanish, Italian, Russian, Turkish, Polish, Arabic, Farsi, Espanol, Deutsch. GTMEDIA Freesat V8 Digital Satellite Finder Meter Spectrum TV Signal Finder Meter DVB-S/S2/S2X HD Digital Signal Detector FTA 1080P HD MPEG-2 MPEG-4 3.5inch LCD Receiver Specifications: Brand Name: GTMEDIA *Hardware Parameters Flash Memory: 64M SPI DDR3 Memory: 1G DDR3 Demodulation: M1502 Tuner M3031 *LNB Input Connector: F type, male Frequency Range: 950MHz-2150MHz Input Impedance: 75Ω Signal Lever: -65dBm-~-25dBm *Demodulator Front End: QPSK, QPSK Modulation Range: 2Mbps-45Mbps SCPC and MCPC Capable: Yes Spectral Inversion: Auto Conversion *DVB-S Spectrum Forward Error Correction Rate: 1/4, 1/3, 2/5, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 Carrier Frequency Acquisition Range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates Symbol Rates: 1- 55Msps Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8 Battery: 7.4V 3000mAh Li-ion Battery Power Supply: DC 12V / 1.5A (Input 100-240V, 50/60Hz) Main Item Size: 15.5 * 9.5 * 4.5cm / 6.10 * 3.74 * 1.77in Main Item Weight: 448g / 15.79oz Package List: 1 * GTMEDIA Digital Satellite Finder Meter 1 * Power Adapter 1 * AV Cable 1 * Car Charger 1 * Carrying Bag 1 * Strap of Carrying Bag 1 * User Manual
