GTMEDIA V8 Finder 2 Satellite Finder Meter satfinder DVB-S2X/S2/S H.265

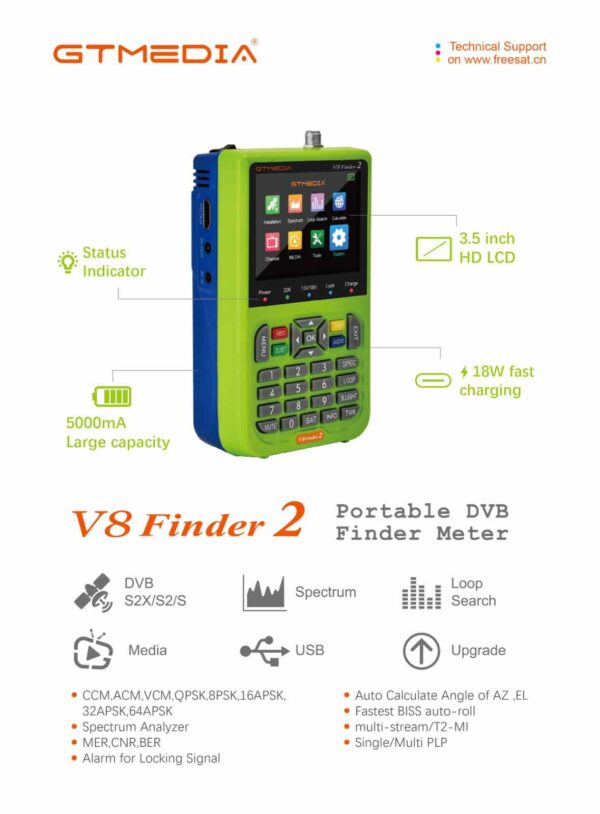

Description GTMEDIA V8 Finder 2 Satellite Finder Meter satfinder DVB-S2X/S2/S H.265     Measurements of DVB-S/S2/S2X signals,  H.265 Hardware decoding; Digital satellite finder meter for quick setup of satellite dishes, 3.5 Inch High Definition LCD Screen, 4. Li-Ion battery (3.7 V /5000 mAh) for up to 4-hour operating time. 5.Support AV in and AV/HD out function, 6.Support 13V / 18V / LOCK status panel LED display directly, 7.Support for DiSEqC1.0/1.1/1.2/USALSand 22 kHz Tone 8. LNB short circuit protection 9.Support battery power display,       Hardware parameters  CPU Ali M3S10  MPEG-4,MPEG-2,H.265  DDR  1G DDR3  Flash  64M SPI  Demodulation  M1502 Tuner M3031         Hardware  Video Decode  MPEG-2 MPHL;MPEG4/H.265, BP MP&HPL4.1;AVS profileL6.1/4.0/2.0   HDMI:480i/p,576i/p,720p,1080i ,1080P  Audio Decode  MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC,Dolby  Panel display  3.5 Inch LCD Screen  LED Indicator  status panel LED display Button 28 key operation     Rear Panel  LNB IN  (Frequency Range950MHz to 2150MHz) HD OUT AV OUT (4-pin 3.5 mm * 14MM jack) AV IN (4-pin 3.5 mm * 14MM jack) 1*USB port ( Software upgrades for USB) Power (Input 110V ~240V, 50/60Hz  DC12V/1.5A)  Standard  System capabilities   DVB-S/S2/S2X system standard:ETS 302 307        LNB Input  Connector  F type,male  Frequency range  950MHZ-2150MHZ  Input Impedance  75Ω  Input Signal level  ‘-65dBm~-25dBm(average power)  Active Ant Power  13/18V DC @ 400mA MAX,Overload Protection  DiSEqC  DiSEqC1.0/1.1/1.2/USALS Motor fully support  LNB switch control   22K     Demodulator  Front end  QPSK,8PSK  Symbol rate  2Mbps~45Mbps  SCPC and MCPC Capable  Yes  Spectral inversion  Auto conversion      DVB-S Spectrum  Forward error correction rate  1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10  Carrier frequency acquisition range  ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates  Roll-off factors for pulse shaping  0.2, 0.25 and 0.35  Symbol Rates  1- 55 Msps  Code Rates  1/2, 2/3, 3/4, 5/6, 7/8      Sortware Features  OSD Language  OSD  Multi-language for options  (EnglishGermanFrenchPortugueseSpanishItalianRussianTurkishPolishArabic FarsiEspanolDeutsch)  Channel Search  Channel search in automatic, manual and network search  Easy Menu  Plug and Play installation, with an easy to use Menu System  PAL/NTSC  Automatic PAL/NTSC conversion, and 4:3 or 16:9 display form  SoftUpgrade  Software upgrade through USB       Packing  Product Dimension  95*155*45 MM(L*W*H)  Packaged Size  240*180*58MM  Carton Size  375*310*253MM  (10pcs/ctn)  Unit Weight  0.85Kg Kg with gift box  Carton Qty&Weight  10 pcs/Carton, 9 kgs  Accessories  Digital satellite meter, Charger cable, User Manual     Physicals  Power Supply  AC IN110-240V, DC 12V/1500mAh  Li-oN Battery  Battery 5000mA/3.7V  Temperature  Operation 0~ 45℃; Storage -10~ 60℃  Humidity  20~90%, non-condensed   GTMEDIA V8 Finder 2 Satellite Finder Meter satfinder DVB-S2X/S2/S H.265   GTMEDIA V8 Finder 2 Satellite Finder Meter satfinder DVB-S2X/S2/S H.265
