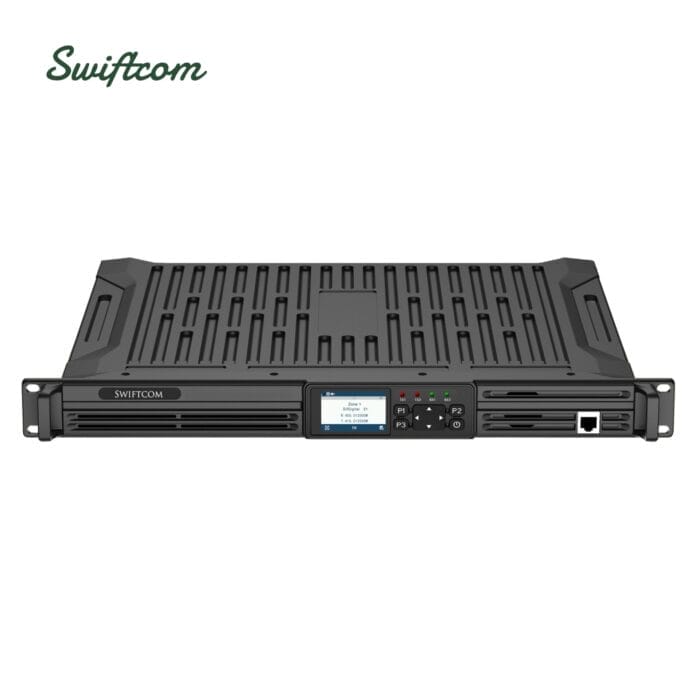

Swiftcom SC R1000 Professional Digital Repeater

KEY FEATURES Built-in Trunking Controller (optional) Intelligent IP Controller (Optional) Built-in Power, Easy AC/DC Switch Dual Mode: Digital/Analog Outstanding Heat Dissipation (2 cooling fans) Multiple Protocols: DMR/NXDN Accurate Display and User-friendly Operation Ultra-slim Design, Easy to Install and Carry General Frequency Range: 400–470 MHz Channels: 32 Zones: 50 Input Voltage (AC): 220V/110V Input Voltage (DC): 13.6V±15% Current (Standby): <800mA Current (TX): <11A Current (RX): <900mA Frequency Stability: ±1.5ppm Antenna Impedance: 50Ω RF Connection: N (N) Dimensions (W×H×D): 48236044.5mm Receiver Channel Spacing: 6.25kHz / 12.5kHz / 25kHz Sensitivity (Analog): 0.18μv(typ) / 0.19μv(12dB SINAD) Sensitivity (Digital): 0.18μv/5�R Adjacent Channel Selectivity: 70dB @12.5kHz 75dB @25kHz Intermodulation: 75dB Blocking: 95dB Spurious Response Rejection: 90dB Audio Output Power: 5.0W/4Ω (at ≤5% distortion) Conducted Spurious Emissions: <-57dBm Transmitter Output Power: 5~50W Channel Spacing: 6.25kHz / 12.5kHz / 25kHz Spurious Emissions: -36dBm(<1GHz) -30dBm(>1GHz) FM Modulation: 16K0F3E @25kHz 11K0F3E @12.5kHz 4FSK Digital Modulation: Data only: 7K60FXD @12.5kHz Voice & Data: 7K60FXE @12.5kHz 4K00F1E @6.25kHz 4K00F1E @6.25kHz Audio Distortion: ≤3% Audio Response: 1~-3dB FM Hum and Noise: 40dB @12.5kHz 45dB @25kHz Digital FSK Error: <5% Adjacent Channel Power: ≤-60dB @12.5kHz ≤-70dB @25kHz The above specifications are tested in accordance with applicable standards. Due to the continuous development of technology, the above index data are subject to change without notice. Standard Accessories Microphone AC Power Cable Programming Cable
