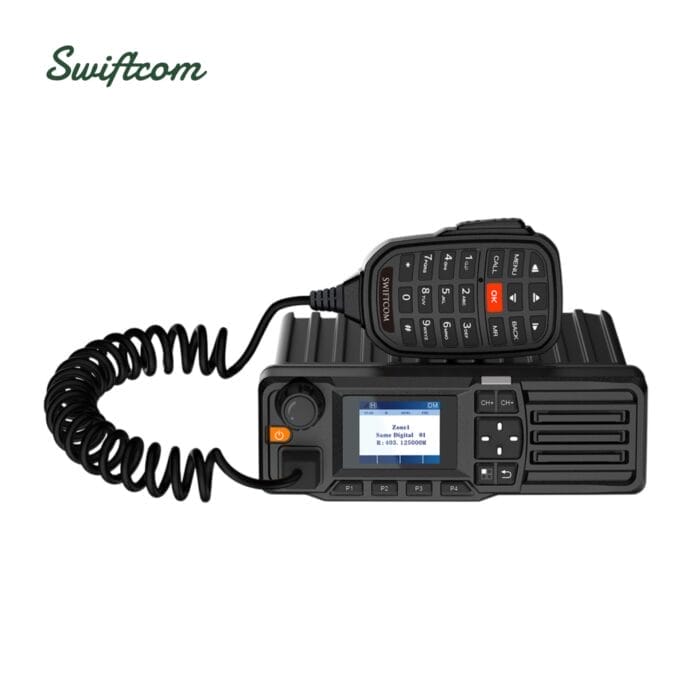

SWIFTCOM SC M3600 DMR / NXDN Digital Trunking Mobile Radio

Features: Dual-mode Digital/Analog Compatible DMR Tier II (Tier III available upon request) SFR (Single Frequency Repeater) Supports NXDN/DMR Emergency Alarm (Private/Group/All Call) DMO 2 Slots Bluetooth (Optional) Beidou/GPS/GLONASS Positioning (Optional) AES-256 Encryption 1.77″ Color Display One Touch for Data/Voice Messages Radio Detection Remote Kill/Revive Specifications: Transmitter RF Power: 10W (Low) / <25W (High) Frequency Error: ±1.0 ppm FSK Error: <2% 4FSK Modulation FM Modulation: 8K50F3E @ 12.5kHz / 16K0F3E @ 25kHz 4FSK Digital Modulation: 12.5kHz (data only): 7K60FXD, (data voice): 7K60FXE Audio Distortion: 3% @ 40% Deviation Conducted Spurious Emission: <-57 dBm (9kHz1GHz), <-47 dBm (1GHz12.75GHz) Receiver Analog Sensitivity: 0.18µV (12dB SINAD) Digital Sensitivity: 0.20µV (BER 5%) Adjacent Channel Selectivity: 60dB @ 12.5kHz / 70dB @ 25kHz Intermodulation: 65dB Blocking: 90dB Co-channel Rejection: -12dB @ 12.5kHz / -8dB @ 25kHz Spurious Response: 70dB Audio Response: 1/-3 dB FM Hum and Noise: 40dB @ 12.5kHz / 45dB @ 25kHz Spurious Emission: < -36 dBm (9kHz–1GHz), < -30 dBm (1GHz–12.75GHz) General Frequency Range: VHF/UHF (exact range unclear) Channel Spacing: 6.25kHz (NXDN) / 12.5kHz / 25kHz Channel/Zone Capacity: 2000 Channels / 64 Zones Operating Voltage: 13.6V ±15% Vocoder Type: AMBE 2™ / NVOC Frequency Stability: ±1.0ppm Antenna Impedance: 50Ω Dimensions (W×H×D): 170mm x 170mm x 57mm Weight: 1.65kg Ingress Protection: IP68 Accessories: Microphone Bracket Power Cable Hanger Screws Mounting Screws
