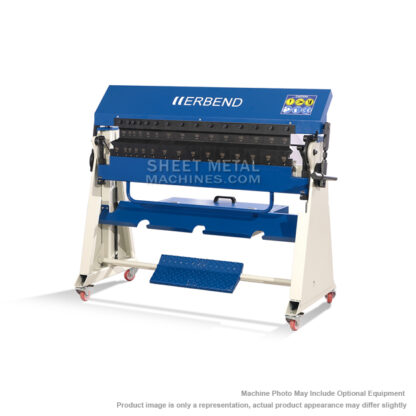

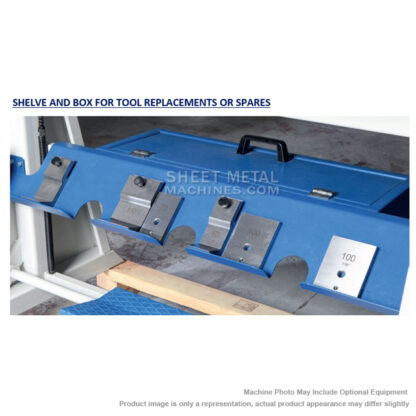

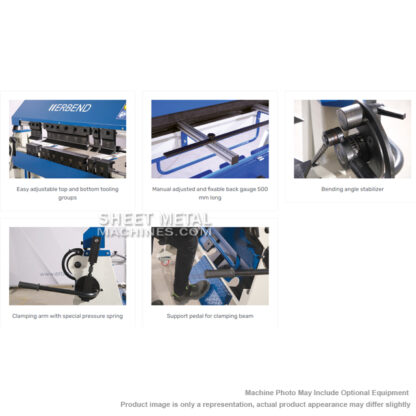

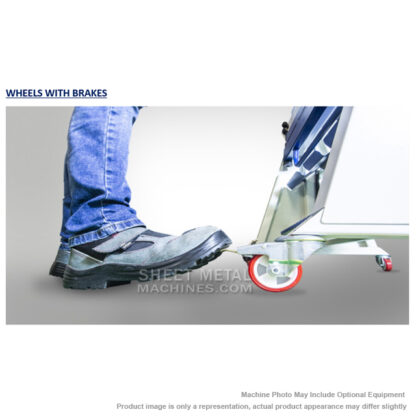

Description Vertical clamping with 7.87 in. stroke Easy tool clamping system with specific Erbend design All segmented tools are 42CrMo4 material, 60 HRC laser induction surface hardened and grinded Bending angle stabilization system Clamping beam stabilizer arm Clamping beam stabilizer foot pedal Easier clamping re-swivel thanks to special pressure springs Easier folding re-swivel thanks to special return springs 19.68 in. manual back gauge system Tool accessory cabinet holder STANDARD TOOLS All upper,lower and folding beam tools are segmented Easy Erbend screwing system for upper beam tools Lower and folding beam tools are easily seated in their holes thanks to precise machining ANGLE STABILIZER 19.68 INCH MANUAL BACKGAUGE WITH RULER SHELVE AND BOX FOR TOOL REPLACEMENTS OR SPARES WHEELS WITH BRAKES SPECIFICATIONS: MODEL UFA 1212 Sheet Length 4 ft (49.21 in.) Capacity – Steel 0.049 in. Capacity – Stainless 0.031 in. Capacity – Aluminum 0.078 in. Dimensions 29.5 x 59 x 67.5 in. Weight 694 lbs. STANDART TECHNICAL SPECS Axis controlls Manual Upper Beam (Z axis) Beam geometry 45° Opening height (without tools) 7.87 in. Folding Beam (Y axis) Bending angle (with angle stabilizor) 0-150° Folding Beam Height Adjustment (A1-A2 axis) Adjustment (manual) 1.37 in. Back gauge (X axis) Gauging control Manual Gauging min/max length 0.39 / 19.68 in. Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
