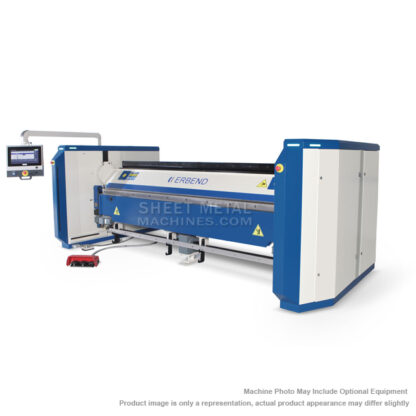

Description 7.87 inch opening height capacity on 180° rotating clamping beam with 2 tool stations as 3.93 inch high segmented goat foot tool and 20° single piece sharpnose tool. Eccentric upper beam power transmission system for rapid clamping/unclamping. Manual folding beam adjustment. 39.37 inch servo backgauge system with feather grooves. 0.39 and 0.98 inch wide single piece folding tools as 2 sets. ERFOLD BASIC CNC LBL Cnc control software on 15.6″ touchscreen controller with swivel arm. Solid lower beam tool without channels. Front light barriers. SPECIFICATIONS: MODEL MFD 4215 Sheet Length 165 in. (13.75 ft) Capacity Steel 0.059 in. Stainless 0.039 in. Aluminum 0.078 in. Dimensions 215 x 87 x 78 in. Weight: 12,125 lbs. Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts OPTIONAL ITEMS – CALL FOR PRICE: 59 inch servo backgauge system with rectangular sheet support table. 98.42 / 126 / 165.35 inch servo backgauge system upgrade with L / T / U shape sheet support table options. ERFOLD ADVANCED 2D/3D CNC Graphic Control Software. Servo folding beam height adjustment. Omega geometry upgrade on lower and folding beam. Manual conical backgauge finger. Motorized conical backgauge system. Pneumatic goat foot tool quick clamping system. Manual crowning system.
