KSD2-CO-S-Ex PEPPERL FUCHS Isolator

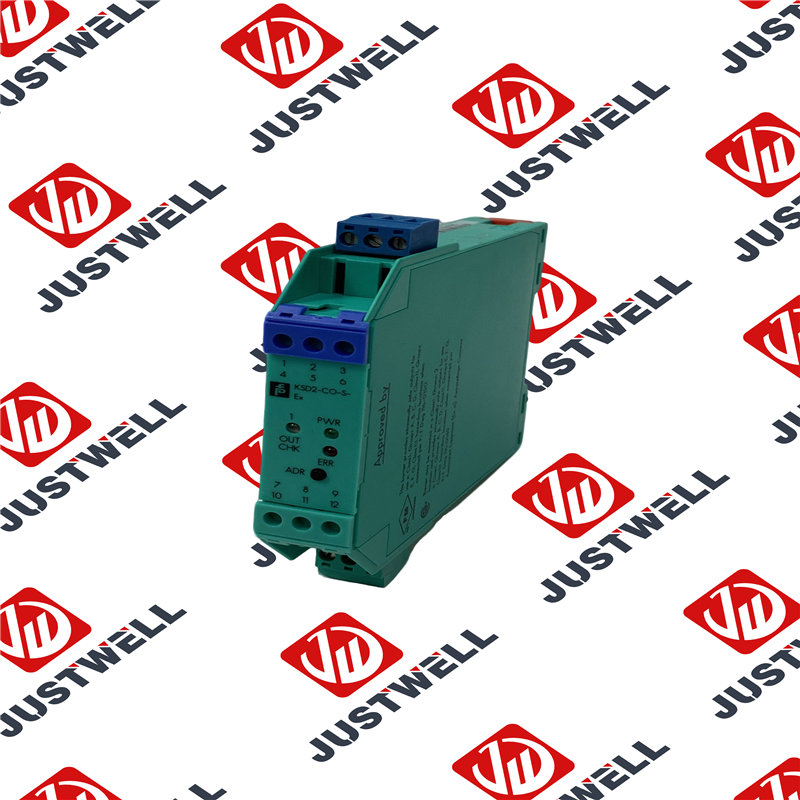

Description KSD2-CO-S-Ex PEPPERL FUCHS Isolator Product Dimensions： Product Description (Detailed Explanation) The KSD2-CO-S-Ex acts as an isolated barrier that transfers a 4 mA – 20 mA signal from a control system (PLC/DCS) to a field device in an intrinsically safe (Ex) circuit. The “S” in the model name indicates SMART capability, meaning it supports bidirectional communication using the HART protocol. This allows digital diagnostic data and configuration parameters to be superimposed on the analog signal. As part of the K-System/RPI line, it mounts on a Power Rail, which simplifies wiring by providing power and internal communication through the rail itself. The module provides galvanic isolation between the field circuit, the control circuit, and the power supply, ensuring high signal integrity and safety. Product Parameters (Technical Specifications) Parameter Category Specification Signal Type Analog Output (SMART/HART) Current Range 4 mA to 20 mA Safety Rating Intrinsically Safe (Ex ia) Hazardous Area Zone Can connect to Zone 0, 1, 2; Class I, II, III, Div. 1/2 Internal Resistance $\ge 250 \Omega$ (HART compatible) Load Max. 650 $\Omega$ at 20 mA Supply Voltage 24V DC (via Power Rail) Isolation 3-way isolation (Power / Input / Output) Response Time $\le 100$ ms Connection Removable terminals (blue for Ex-side) Product Advantages (Key Benefits) Intrinsically Safe: Certified for the highest protection levels, allowing for the safe operation of field devices in explosive atmospheres. HART Transparency: Supports full HART communication, enabling remote valve calibration, status monitoring, and asset management from the control room. Compact Design: Part of a high-density system that saves significant space in the control cabinet compared to traditional barriers. Redundancy & Reliability: Features internal monitoring and is designed for long-term stability in continuous-process industries. Reduced Wiring: The Power Rail integration eliminates the need for individual power daisy-chaining, reducing the risk of wiring errors. Precautions (Important Notes) Hazardous Area Separation: Always ensure that the blue intrinsically safe (Ex) terminals are physically separated from the non-intrinsically safe (control/power) wiring to prevent energy leakage. Load Limits: Verify that the total loop resistance (actuator cable) does not exceed the 650 $\Omega$ limit; otherwise, the module may not be able to drive the full 20 mA signal. Configuration: Use the Pepperl Fuchs PACTware software or a compatible DTM for initial module configuration and detailed diagnostics. Mounting Environment: Ensure the module is installed in an IP54 or higher rated enclosure if the surrounding environment is subject to dust or moisture. Product Applications (Typical Use Cases) Chemical Plants: Controlling the position of hazardous-area valves used in volatile liquid processing. Oil & Gas Refineries: Driving I/P converters that manage pneumatic actuators on large-scale pipeline systems. Pharmaceutical Batching: Precise control of dosing valves where explosive dust or vapors may be present. Offshore Platforms: Managing safety-critical control elements in confined spaces where space-saving high-density modules are required. Power Generation: Regulating fuel flow control valves in turbine systems located in classified hazardous zones. Shipping Port: Xiamen, China Payment: Bank of Chicago, Bank of Singapore Express cooperation: fedex, DHL, UPS and your express account Service: Professional Sales provides 24 hours /7 days online service Please make an inquiry for more models： ACCURAY 8-061588-002 ADEMCO ADR1600E ADTEC AX-1000-AMII ACCURAY QA-3-017948-003 ADEMCO HRM60N500 ADTRAN 4200663L1 ACCURAY 086370-001 ADEMCO VISTA-250FBP Advanced ICP-16L ACCURAY 086158-004 ADEPT Adept 101 ADVANCED DUO-I8030NM ACCURAY 085221-001 ADEPT AWCII 040 ADVANCED 9R918W3 ACCURAY 061552-001 ADEPT EJI90340-40000 ADVANCED SB1391-C-R-C-A Accu-Sort BoxPC-126M ADEPT SCARA 550 Advanced MN3150272-006 ACME TA-1-81008 ADEPT 10330-11350 Advantech PPC-105T-ABAR ACME TA-1-32406 ADEPT 10332-12350 Advantech FPM-3171G-XCE ACME TA-1-81306 ADEPT ASSY 10350-00100 Advantech WOP-2100T-N2AE ACME T-1-53011 ADEPT ADEPT AWCII 040 ADVANTEST R3265A ACME TA-2-81003 ADEPT AWCII-040 ADVANTEST BLF-022828 ACC-BOARD Acquisition AL81G ADEPT 90402-40013/XY-HRS013-S1B1-AD ADVANTEST BLG-022829 ACS ACS-0400-PS ADEPT 90402-40013 ADVANTEST R6244 ACS SB1381-B-E-R-A-PM2 ADEPT 90400-20055/XY-HRS-055M201 Advantest D3185A ACS SB1381-C-E-R-A ADEPT 90400-02100-EXTB01AD AE RAPID-F ACS SB214ND-F-9 ADEPT 90400-70030 AEG 41-94384 ACS MOTION CONTROL HSSI-I016 ADEPT 90400-71031 AEG M907-122 ACT TCS-SRME-6210-CD-RTM ADEPT 10330-11350 AEG DEP220 ACTION AIOI8100 ADIXEN FM36122 AEG DTA200 ACTUS POWER NPSA-TMTA-222 ADP ADP-1 AEG DTA201 ACUITY 002-PV900 ADRIVE E642B-MGB-K-01 AEG PC-A984-145 ACUITY 010-PV9040 ADTEC 3000III AEG MM-PM22-200 ADC FPL-72RP0W-1448B ADTEC AXR-2000III AEG MM-PM21400C ADDI-DATA APCI-1710 ADTEC AX-2000EUII-N AEG MM-PM21-400 AEG AS-P892-000 AEG M135-H60A-OYOY-G3 AEG PC-E984-381 AEG M344-MKOA-4001 Aerotech U100M-A-40-F5 AEG MM-PM22-300 AEG CGC13-TB AFE DP320T-BC AGIE MJG-2129 AGILENT G2630-66015
