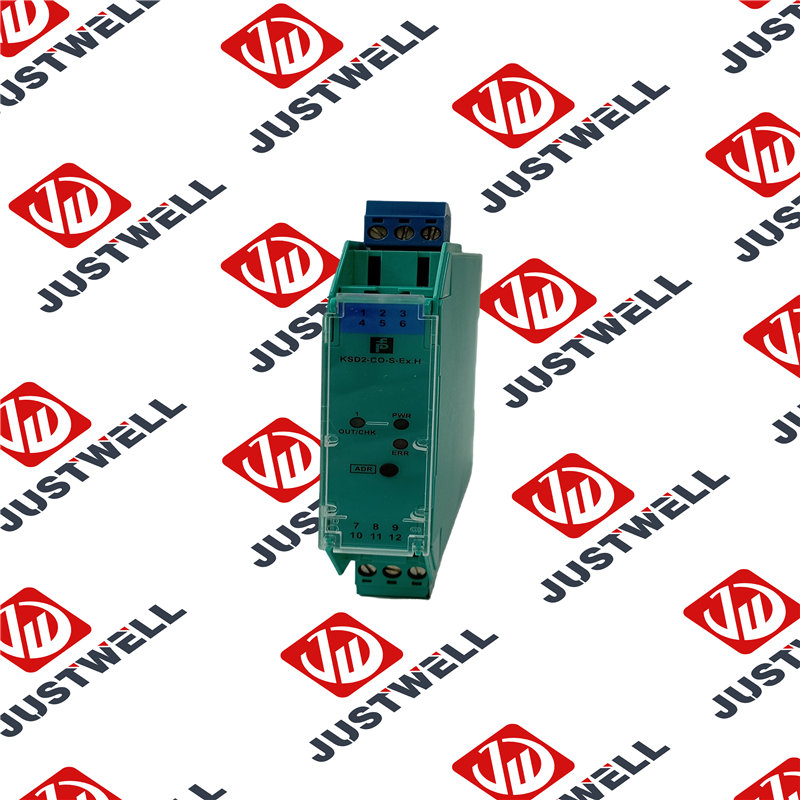

KSD2-CO-S-Ex.H PEPPERL FUCHS Analog HART Output Driver

Description KSD2-CO-S-Ex.H PEPPERL FUCHS Analog HART Output Driver Product Dimensions： Product Description (Detailed Explanation) The KSD2-CO-S-Ex.H acts as an isolated barrier and signal converter. It receives a digital signal from the RPI system bus and converts it into a high-precision 4…20 mA analog output to control field equipment such as control valves, I/P converters, or positioners located in Zone 0, 1, or 2. The module is “SMART” because it is transparent to HART communication. It allows digital HART signals to be superimposed on the analog current loop, enabling the control system (DCS/PLC) to perform remote configuration, calibration, and diagnostics of the field instrument. The module also features comprehensive line fault detection, identifying open or short circuits in the field wiring. Product Parameters (Technical Specifications) Parameter Category Specification Safety Type Intrinsically Safe [Ex ia Ga] IIC (Hazardous Area) Output Signal 4…20 mA DC (Source) Load Impedance Max. 700 Ω (at 20 mA) HART Transparency Bidirectional (Frequency Shift Keying / FSK) Accuracy <0.1% of full scale Response Time <100 ms (10% to 90% of step change) Internal Power 24V DC (via Power Rail or Bus) Line Monitoring Open circuit and short circuit detection Isolation Galvanic isolation (Input / Output / Power) Mounting 35mm DIN Rail (RPI System specific) Product Advantages (Key Benefits) Intrinsically Safe Output: Certified for the highest safety standards, allowing direct connection to devices in explosive atmospheres without additional barriers. HART Communication Support: Allows for “Pass-Through” of HART commands, enabling centralized management of SMART field devices (e.g., via AMS or PACTware). High Reliability & Precision: Low temperature drift and high accuracy ensure precise control of critical process valves. Integrated Diagnostics: Automatically detects and reports field-side wiring faults, significantly reducing troubleshooting time during plant outages. Hot-Swappable: The module can be replaced during operation without disturbing the system bus or other modules in the rack. Precautions (Important Notes) Entity Parameters: When connecting to a field device, always verify that the entity parameters (Uo​,Io​,Po​) of the KSD2-CO-S-Ex.H are compatible with the field device (Ui​,Ii​,Pi​) to maintain intrinsic safety. Grounding: Ensure that the DIN rail or Power Rail is properly grounded according to the explosion protection regulations (IEC/EN 60079-14). Load Limits: Do not exceed the maximum load of 700 Ω. Excessive resistance will cause the current loop to saturate and the control valve to behave unpredictably. Signal Interference: Ensure that field wiring is kept separate from high-voltage cables to prevent electromagnetic interference (EMI) from degrading the HART digital signal. Product Applications (Typical Use Cases) Petrochemical Plants: Driving pneumatic control valves in explosive refining units. Oil & Gas Offshore Platforms: Controlling actuator positioning on wellhead manifolds where space and safety are critical. Chemical Processing: Managing variable-speed dosing pumps via I/P converters in hazardous batch reactors. Pharmaceutical Manufacturing: Precision control of sterile valves in environments involving flammable solvents. Wastewater Treatment: Operating methane gas flare valves in digestion tanks. Shipping Port: Xiamen, China Payment: Bank of Chicago, Bank of Singapore Express cooperation: fedex, DHL, UPS and your express account Service: Professional Sales provides 24 hours /7 days online service Please make an inquiry for more models： ACCURAY 8-061588-002 ADEMCO ADR1600E ADTEC AX-1000-AMII ACCURAY QA-3-017948-003 ADEMCO HRM60N500 ADTRAN 4200663L1 ACCURAY 086370-001 ADEMCO VISTA-250FBP Advanced ICP-16L ACCURAY 086158-004 ADEPT Adept 101 ADVANCED DUO-I8030NM ACCURAY 085221-001 ADEPT AWCII 040 ADVANCED 9R918W3 ACCURAY 061552-001 ADEPT EJI90340-40000 ADVANCED SB1391-C-R-C-A Accu-Sort BoxPC-126M ADEPT SCARA 550 Advanced MN3150272-006 ACME TA-1-81008 ADEPT 10330-11350 Advantech PPC-105T-ABAR ACME TA-1-32406 ADEPT 10332-12350 Advantech FPM-3171G-XCE ACME TA-1-81306 ADEPT ASSY 10350-00100 Advantech WOP-2100T-N2AE ACME T-1-53011 ADEPT ADEPT AWCII 040 ADVANTEST R3265A ACME TA-2-81003 ADEPT AWCII-040 ADVANTEST BLF-022828 ACC-BOARD Acquisition AL81G ADEPT 90402-40013/XY-HRS013-S1B1-AD ADVANTEST BLG-022829 ACS ACS-0400-PS ADEPT 90402-40013 ADVANTEST R6244 ACS SB1381-B-E-R-A-PM2 ADEPT 90400-20055/XY-HRS-055M201 Advantest D3185A ACS SB1381-C-E-R-A ADEPT 90400-02100-EXTB01AD AE RAPID-F ACS SB214ND-F-9 ADEPT 90400-70030 AEG 41-94384 ACS MOTION CONTROL HSSI-I016 ADEPT 90400-71031 AEG M907-122 ACT TCS-SRME-6210-CD-RTM ADEPT 10330-11350 AEG DEP220 ACTION AIOI8100 ADIXEN FM36122 AEG DTA200 ACTUS POWER NPSA-TMTA-222 ADP ADP-1 AEG DTA201 ACUITY 002-PV900 ADRIVE E642B-MGB-K-01 AEG PC-A984-145 ACUITY 010-PV9040 ADTEC 3000III AEG MM-PM22-200 ADC FPL-72RP0W-1448B ADTEC AXR-2000III AEG MM-PM21400C ADDI-DATA APCI-1710 ADTEC AX-2000EUII-N AEG MM-PM21-400 AEG AS-P892-000 AEG M135-H60A-OYOY-G3 AEG PC-E984-381 AEG M344-MKOA-4001 Aerotech U100M-A-40-F5 AEG MM-PM22-300 AEG CGC13-TB AFE DP320T-BC AGIE MJG-2129 AGILENT G2630-66015
