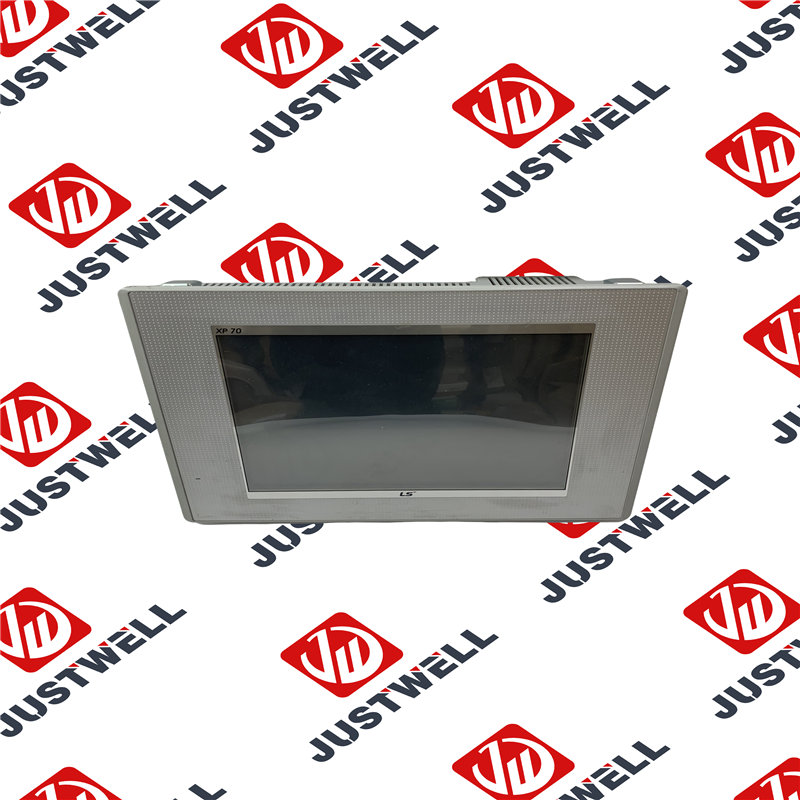

XP70-TTA/AC-G4 Ls XGT Panel HMI(10.4″ TFT LCD)

Description XP70-TTA/AC-G4 Ls XGT Panel HMI(10.4″ TFT LCD) Product Dimensions： Product Description (Detailed Explanation) The XP70-TTA/AC-G4 is a 10.4-inch TFT color LCD touch panel that serves as the primary operational interface for PLC-based systems. Running on the Windows CE 5.0 core, it offers high-speed data processing and clear, vivid graphics with a resolution of 640×480 pixels. The “/AC” designation indicates that this model is powered by a standard 100-240V AC supply, making it easy to integrate into existing industrial power grids without the need for additional DC power supplies. It supports various graphic formats (BMP, JPG, GIF) and provides large memory for data logging, alarms, and recipe management. Product Parameters (Technical Specifications) Parameter Category Specification Display Type TFT Color LCD (65,536 colors) Screen Size 10.4 inches (26 cm diagonal) Resolution 640 x 480 Pixels (VGA) Backlight LED type (Auto On/Off, ~50,000 hours life) Touch Panel 8-wire system, Analog resistive Processor 32-bit RISC ARM920T (200 MHz) Memory 10MB Drawing data, 512KB Backup (SRAM) Rated Voltage 100-240V AC (50/60 Hz) Interfaces Ethernet (10/100 Base-T), RS-232C, RS-422/485, USB Host Operating System Windows CE 5.0 Product Advantages (Key Benefits) High-Quality Visualization: The 65K color TFT display ensures that complex process mimics and data trends are presented with high clarity and contrast. Versatile Connectivity: Built-in Ethernet and multiple serial ports allow simultaneous communication with various PLCs, controllers, and peripheral devices (like mice or printers). Enhanced Data Management: Supports sophisticated functions like data logging, recipe management, and alarm history, which are stored in the internal 512KB non-volatile SRAM. AC Power Convenience: The internal AC power module simplifies installation by allowing direct connection to the factory’s main power supply. Multilingual Support: Supports up to 4 languages simultaneously, allowing global machines to be operated by local staff easily. Precautions (Important Notes) Panel Cutout: Ensure the cabinet cutout is exactly 259 x 201 mm (W x H) to maintain the IP65 seal integrity. Environment: While the front is IP65 rated, the rear is IP20. Ensure the enclosure is free from corrosive gases and excessive moisture. Grounding: The FG (Frame Ground) terminal must be connected to a dedicated ground ($< 100\ \Omega$) to prevent electrical noise and ensure touch screen accuracy. Cleaning: Clean the screen only with a soft, dry cloth. Never use chemical solvents or organic cleaners, as they can damage the resistive touch layer. Product Applications (Typical Use Cases) Factory Automation: Serving as the main HMI for automotive assembly lines or electronics manufacturing cells. Packaging Machinery: Controlling high-speed wrapping, labeling, and filling machines where multi-recipe storage is required. Water Treatment: Visualizing pump statuses, tank levels, and flow rates in municipal or industrial treatment facilities. Building Automation: Managing HVAC, lighting, and security systems in large commercial complexes. Food & Beverage: Operating batch processing systems where hygiene-grade front panels and data logging are essential for quality control. Shipping Port: Xiamen, China Payment: Bank of Chicago, Bank of Singapore Express cooperation: fedex, DHL, UPS and your express account Service: Professional Sales provides 24 hours /7 days online service Please make an inquiry for more models： ACCURAY 8-061588-002 ADEMCO ADR1600E ADTEC AX-1000-AMII ACCURAY QA-3-017948-003 ADEMCO HRM60N500 ADTRAN 4200663L1 ACCURAY 086370-001 ADEMCO VISTA-250FBP Advanced ICP-16L ACCURAY 086158-004 ADEPT Adept 101 ADVANCED DUO-I8030NM ACCURAY 085221-001 ADEPT AWCII 040 ADVANCED 9R918W3 ACCURAY 061552-001 ADEPT EJI90340-40000 ADVANCED SB1391-C-R-C-A Accu-Sort BoxPC-126M ADEPT SCARA 550 Advanced MN3150272-006 ACME TA-1-81008 ADEPT 10330-11350 Advantech PPC-105T-ABAR ACME TA-1-32406 ADEPT 10332-12350 Advantech FPM-3171G-XCE ACME TA-1-81306 ADEPT ASSY 10350-00100 Advantech WOP-2100T-N2AE ACME T-1-53011 ADEPT ADEPT AWCII 040 ADVANTEST R3265A ACME TA-2-81003 ADEPT AWCII-040 ADVANTEST BLF-022828 ACC-BOARD Acquisition AL81G ADEPT 90402-40013/XY-HRS013-S1B1-AD ADVANTEST BLG-022829 ACS ACS-0400-PS ADEPT 90402-40013 ADVANTEST R6244 ACS SB1381-B-E-R-A-PM2 ADEPT 90400-20055/XY-HRS-055M201 Advantest D3185A ACS SB1381-C-E-R-A ADEPT 90400-02100-EXTB01AD AE RAPID-F ACS SB214ND-F-9 ADEPT 90400-70030 AEG 41-94384 ACS MOTION CONTROL HSSI-I016 ADEPT 90400-71031 AEG M907-122 ACT TCS-SRME-6210-CD-RTM ADEPT 10330-11350 AEG DEP220 ACTION AIOI8100 ADIXEN FM36122 AEG DTA200 ACTUS POWER NPSA-TMTA-222 ADP ADP-1 AEG DTA201 ACUITY 002-PV900 ADRIVE E642B-MGB-K-01 AEG PC-A984-145 ACUITY 010-PV9040 ADTEC 3000III AEG MM-PM22-200 ADC FPL-72RP0W-1448B ADTEC AXR-2000III AEG MM-PM21400C ADDI-DATA APCI-1710 ADTEC AX-2000EUII-N AEG MM-PM21-400 AEG AS-P892-000 AEG M135-H60A-OYOY-G3 AEG PC-E984-381 AEG M344-MKOA-4001 Aerotech U100M-A-40-F5 AEG MM-PM22-300 AEG CGC13-TB AFE DP320T-BC AGIE MJG-2129 AGILENT G2630-66015
