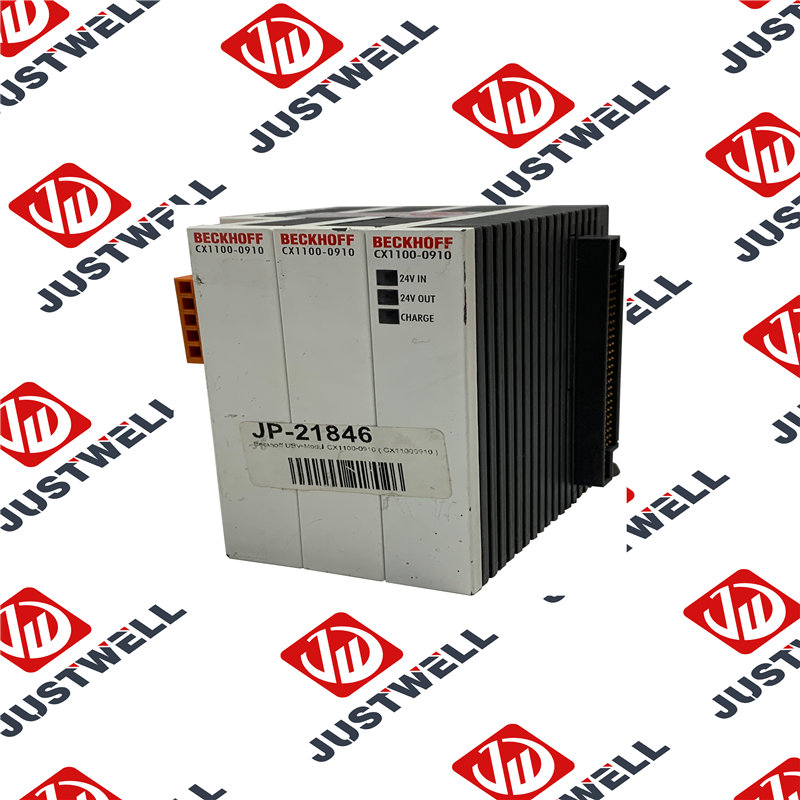

CX1100-0910 BECKHOFF CX1100 UPS Module for CX Systems

Description CX1100-0910 BECKHOFF CX1100 UPS Module for CX Systems Product Dimensions： Product Description (Detailed Explanation) The CX1100-0910 is a plug-in power supply and UPS module that mounts directly to the left side of a CX-series CPU. Unlike standard power supplies, it features integrated capacitive storage (capacitors) that acts as a short-term energy reserve. When the external 24V DC power fails, the CX1100-0910 immediately takes over, providing enough power to the CPU and the internal bus (K-bus or IP-Link) to allow the TwinCAT runtime to save persistent data (Retain Data), close open files on the storage medium (CF card), and perform an orderly operating system shutdown. This prevents file system corruption and data loss, which are common risks for industrial PCs during sudden power outages. Product Parameters (Technical Specifications) Parameter Category Specification Compatibility CX1010, CX1020, CX1030 Embedded PCs Input Voltage 24V DC (-15% / 20%) Output Current 2.0 A (to the CPU and internal bus) Storage Medium High-performance Capacitors (Maintenance-free) Buffer Time Typically 15 to 60 seconds (Load-dependent) Diagnostics Status LEDs (Power, UPS State, Charging) Connection 5-pin open connector (Power and 24V I/O) Operating Temp. $0^{\circ}C$ to $ 55^{\circ}C$ Protection Class IP20 (DIN rail mounting) Product Advantages (Key Benefits) Data Integrity: Guarantees that the Windows CE or Windows Embedded operating system shuts down correctly, preventing “Blue Screen” errors or corrupted CF cards. Maintenance-Free: Uses capacitive technology rather than lead-acid batteries. This eliminates the need for periodic battery replacement and makes the unit environmentally friendly. Seamless Integration: Designed as part of the modular CX system; no external cabling is required to connect the UPS to the CPU—it connects via the internal PC/104-style bus. Persistent Data Support: Works with TwinCAT to automatically save critical process variables to the non-volatile memory during power failure. Compact Design: Saves significant space in the control cabinet by combining power supply and UPS functions in a single narrow housing. Precautions (Important Notes) Limited Buffer Time: This is a shutdown UPS, not a backup power source for long-term operation. It only provides enough power for a few seconds to safely stop the system. Load Calculation: The 2.0 A output must cover the CPU, any attached I/O modules (K-bus), and the system display. If the total load exceeds 2.0 A, the buffer time will decrease significantly. TwinCAT Configuration: To use the UPS functionality, the “TwinCAT PLC UPS” library must be configured in the software to monitor the UPS status and trigger the shutdown command. Charging Time: After a discharge event or upon initial power-up, the internal capacitors require a short period to reach full charge before the UPS protection is active. Product Applications (Typical Use Cases) Critical Process Control: Preventing loss of batch data or recipe parameters in chemical or food processing when a power dip occurs. Remote Substations: Ensuring that log files and communication buffers are saved in unmanned wind turbine or solar farm controllers. Machinery with Large Databases: Protecting local SQL databases or HMI history files on the embedded PC from corruption. High-Vibration Environments: Since it contains no heavy batteries, it is ideal for mobile applications or machinery subject to constant movement. Shipping Port: Xiamen, China Payment: Bank of Chicago, Bank of Singapore Express cooperation: fedex, DHL, UPS and your express account Service: Professional Sales provides 24 hours /7 days online service Please make an inquiry for more models： ACCURAY 8-061588-002 ADEMCO ADR1600E ADTEC AX-1000-AMII ACCURAY QA-3-017948-003 ADEMCO HRM60N500 ADTRAN 4200663L1 ACCURAY 086370-001 ADEMCO VISTA-250FBP Advanced ICP-16L ACCURAY 086158-004 ADEPT Adept 101 ADVANCED DUO-I8030NM ACCURAY 085221-001 ADEPT AWCII 040 ADVANCED 9R918W3 ACCURAY 061552-001 ADEPT EJI90340-40000 ADVANCED SB1391-C-R-C-A Accu-Sort BoxPC-126M ADEPT SCARA 550 Advanced MN3150272-006 ACME TA-1-81008 ADEPT 10330-11350 Advantech PPC-105T-ABAR ACME TA-1-32406 ADEPT 10332-12350 Advantech FPM-3171G-XCE ACME TA-1-81306 ADEPT ASSY 10350-00100 Advantech WOP-2100T-N2AE ACME T-1-53011 ADEPT ADEPT AWCII 040 ADVANTEST R3265A ACME TA-2-81003 ADEPT AWCII-040 ADVANTEST BLF-022828 ACC-BOARD Acquisition AL81G ADEPT 90402-40013/XY-HRS013-S1B1-AD ADVANTEST BLG-022829 ACS ACS-0400-PS ADEPT 90402-40013 ADVANTEST R6244 ACS SB1381-B-E-R-A-PM2 ADEPT 90400-20055/XY-HRS-055M201 Advantest D3185A ACS SB1381-C-E-R-A ADEPT 90400-02100-EXTB01AD AE RAPID-F ACS SB214ND-F-9 ADEPT 90400-70030 AEG 41-94384 ACS MOTION CONTROL HSSI-I016 ADEPT 90400-71031 AEG M907-122 ACT TCS-SRME-6210-CD-RTM ADEPT 10330-11350 AEG DEP220 ACTION AIOI8100 ADIXEN FM36122 AEG DTA200 ACTUS POWER NPSA-TMTA-222 ADP ADP-1 AEG DTA201 ACUITY 002-PV900 ADRIVE E642B-MGB-K-01 AEG PC-A984-145 ACUITY 010-PV9040 ADTEC 3000III AEG MM-PM22-200 ADC FPL-72RP0W-1448B ADTEC AXR-2000III AEG MM-PM21400C ADDI-DATA APCI-1710 ADTEC AX-2000EUII-N AEG MM-PM21-400 AEG AS-P892-000 AEG M135-H60A-OYOY-G3 AEG PC-E984-381 AEG M344-MKOA-4001 Aerotech U100M-A-40-F5 AEG MM-PM22-300 AEG CGC13-TB AFE DP320T-BC AGIE MJG-2129 AGILENT G2630-66015
