CX5020-0122 BECKHOFF CX5020 Embedded PC

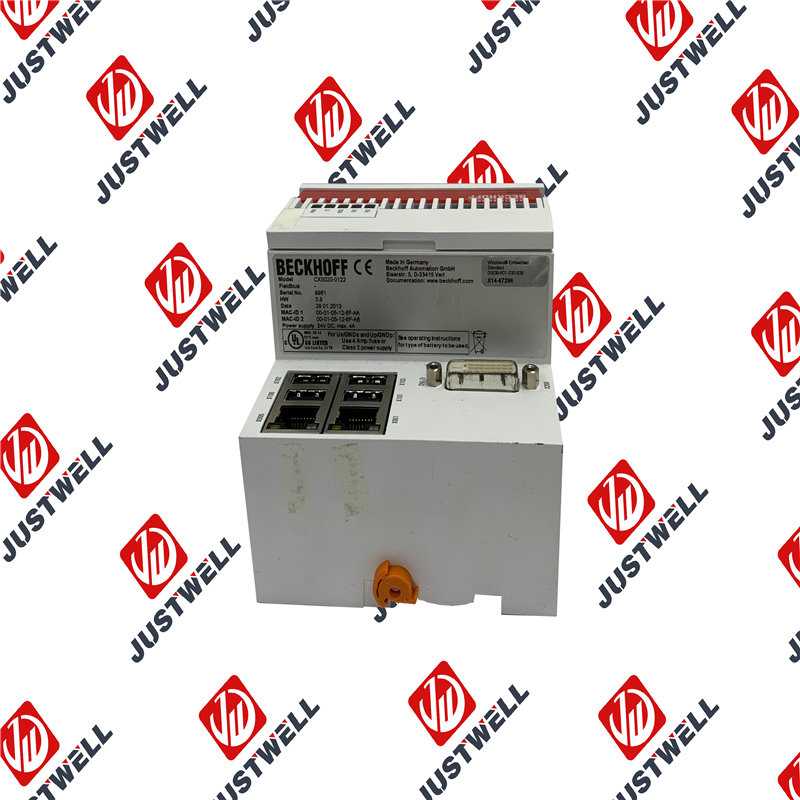

Description CX5020-0122 BECKHOFF CX5020 Embedded PC Product Dimensions： Product Description (Detailed Explanation) The CX5020-0122 is powered by an Intel Atom® Z530 processor (1.6 GHz). This specific configuration (“-0122”) typically indicates a pre-installed operating system (such as Windows Embedded Standard 7 or Windows Embedded Compact) and a TwinCAT 2 or TwinCAT 3 runtime environment. The device features a modular interface concept, allowing it to act as a central controller for EtherCAT I/O terminals (E-bus) or standard Bus Terminals (K-bus). Its magnesium alloy housing provides excellent heat dissipation without the need for a cooling fan, making it highly reliable in dusty or vibration-prone industrial environments. Product Parameters (Technical Specifications) Parameter Category Specification Processor Intel Atom® Z530, 1.6 GHz Memory (RAM) 1 GB DDR2 (Internal, not expandable) Storage CF card slot (Standard sizes: 128MB to 32GB) Interfaces 2 x RJ45 (10/100/1000 Mbps), 4 x USB 2.0, 1 x DVI-D Expansion Slot Optional interface (e.g., RS232, RS485, PROFIBUS, CANopen) I/O Connection Automatic detection of E-bus (EtherCAT) or K-bus (Standard) Power Supply 24V DC (-15% / 20%) Clock Internal battery-backed real-time clock (replaceable) Operating System Windows Embedded Standard 7 or Windows CE Protection Class IP20 Product Advantages (Key Benefits) Fanless & Maintenance-Free: The absence of rotating parts (no fan, no hard drive) significantly increases the Mean Time Between Failures (MTBF). High Performance-to-Size Ratio: Delivers PC-level processing power in a compact 100mm wide housing, saving valuable space in control cabinets. Native EtherCAT Support: Direct connection to EtherCAT terminals ensures ultra-fast communication cycles and sub-millisecond deterministic control. Non-Volatile Memory: Includes integrated 1-second UPS (via CX1100-09xx power supply) or persistent data storage to protect critical variables during power loss. Flexible Connectivity: Multiple USB and Gigabit Ethernet ports allow for easy integration of HMI, vision sensors, and upper-level MES/ERP networks. Precautions (Important Notes) CF Card Quality: Use only industrial-grade CF cards (SLC technology) provided by Beckhoff. Commercial-grade cards have limited write cycles and may lead to system crashes. Power Supply Selection: The CX5020 requires a CX1100-001x power supply module to be attached to the right side of the unit to function and provide power to the I/O terminals. Shutdown Procedure: Always use the “Shut Down” command in Windows or a TwinCAT software trigger before removing power to prevent file system corruption on the CF card. Thermal Management: While fanless, the unit requires vertical mounting on a DIN rail with at least 30mm of clearance above and below for natural convection cooling. Product Applications (Typical Use Cases) CNC & Motion Control: Coordinating multi-axis synchronized movements in woodworking or metal-cutting machines using TwinCAT NC. Building Automation: Centralized control for HVAC, lighting, and energy monitoring in large commercial buildings via BACnet or Modbus. Packaging Machinery: High-speed labeling and sorting systems where millisecond-level reaction times are required. Renewable Energy: Monitoring and controlling wind turbine pitch systems or solar tracking arrays in harsh outdoor enclosures. Test Benches: Data acquisition and sequence control in automotive component testing where DVI output is needed for local visualization. Shipping Port: Xiamen, China Payment: Bank of Chicago, Bank of Singapore Express cooperation: fedex, DHL, UPS and your express account Service: Professional Sales provides 24 hours /7 days online service Please make an inquiry for more models： ACCURAY 8-061588-002 ADEMCO ADR1600E ADTEC AX-1000-AMII ACCURAY QA-3-017948-003 ADEMCO HRM60N500 ADTRAN 4200663L1 ACCURAY 086370-001 ADEMCO VISTA-250FBP Advanced ICP-16L ACCURAY 086158-004 ADEPT Adept 101 ADVANCED DUO-I8030NM ACCURAY 085221-001 ADEPT AWCII 040 ADVANCED 9R918W3 ACCURAY 061552-001 ADEPT EJI90340-40000 ADVANCED SB1391-C-R-C-A Accu-Sort BoxPC-126M ADEPT SCARA 550 Advanced MN3150272-006 ACME TA-1-81008 ADEPT 10330-11350 Advantech PPC-105T-ABAR ACME TA-1-32406 ADEPT 10332-12350 Advantech FPM-3171G-XCE ACME TA-1-81306 ADEPT ASSY 10350-00100 Advantech WOP-2100T-N2AE ACME T-1-53011 ADEPT ADEPT AWCII 040 ADVANTEST R3265A ACME TA-2-81003 ADEPT AWCII-040 ADVANTEST BLF-022828 ACC-BOARD Acquisition AL81G ADEPT 90402-40013/XY-HRS013-S1B1-AD ADVANTEST BLG-022829 ACS ACS-0400-PS ADEPT 90402-40013 ADVANTEST R6244 ACS SB1381-B-E-R-A-PM2 ADEPT 90400-20055/XY-HRS-055M201 Advantest D3185A ACS SB1381-C-E-R-A ADEPT 90400-02100-EXTB01AD AE RAPID-F ACS SB214ND-F-9 ADEPT 90400-70030 AEG 41-94384 ACS MOTION CONTROL HSSI-I016 ADEPT 90400-71031 AEG M907-122 ACT TCS-SRME-6210-CD-RTM ADEPT 10330-11350 AEG DEP220 ACTION AIOI8100 ADIXEN FM36122 AEG DTA200 ACTUS POWER NPSA-TMTA-222 ADP ADP-1 AEG DTA201 ACUITY 002-PV900 ADRIVE E642B-MGB-K-01 AEG PC-A984-145 ACUITY 010-PV9040 ADTEC 3000III AEG MM-PM22-200 ADC FPL-72RP0W-1448B ADTEC AXR-2000III AEG MM-PM21400C ADDI-DATA APCI-1710 ADTEC AX-2000EUII-N AEG MM-PM21-400 AEG AS-P892-000 AEG M135-H60A-OYOY-G3 AEG PC-E984-381 AEG M344-MKOA-4001 Aerotech U100M-A-40-F5 AEG MM-PM22-300 AEG CGC13-TB AFE DP320T-BC AGIE MJG-2129 AGILENT G2630-66015
