KS3002 Beckhoff Bus Terminal

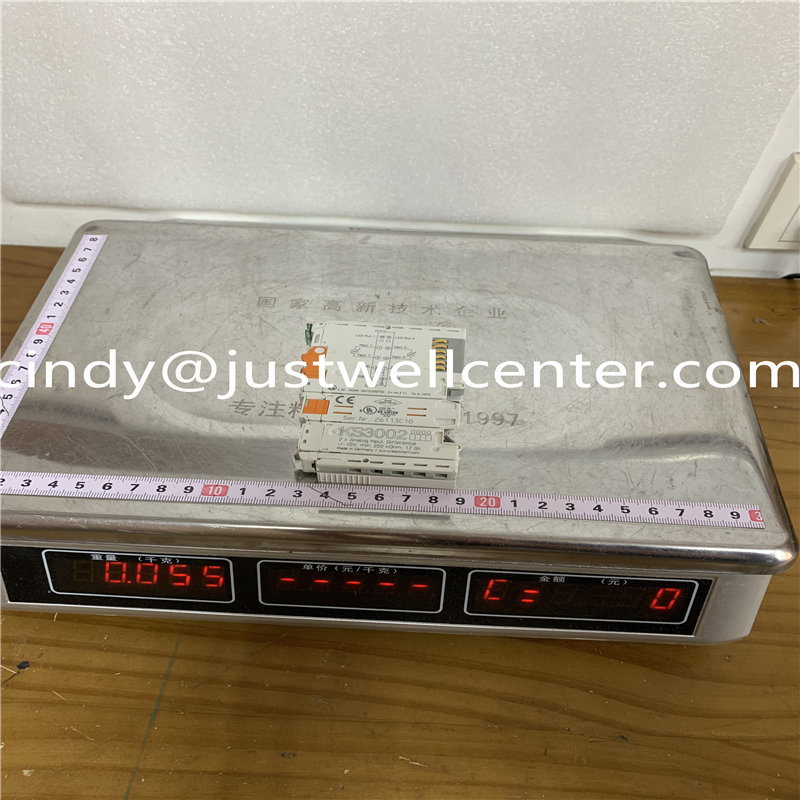

Description KS3002 Beckhoff Bus Terminal Product Dimensions： Product Description (Detailed Explanation) The KS3002 is a 2-channel analog input terminal capable of processing signals in the range of -10V to 10V. It digitizes these analog voltages with a resolution of 12 bits and transmits them to the higher-level automation device in an electrically isolated form. The unique feature of the KS series (compared to the standard KL series) is the pluggable wiring level. The terminal consists of a base and a removable front connector. This “Plug-and-Play” design allows for the electronic component to be replaced without disconnecting any field wires, making it ideal for high-availability systems where maintenance speed is critical. Product Parameters (Technical Specifications) Parameter Category Specification Number of Inputs 2 Signal Voltage -10V … 10V Resolution 12 Bit Conversion Time Approx. 2 ms Measuring Error < $\pm$ 0.3% (relative to full-scale value) Internal Resistance > 200 $k\Omega$ Electrical Isolation 500 V (K-bus / signal voltage) Current Consump. (K-bus) Typ. 60 mA Bit Width in Process Image Input: 2 x 16-bit data (2 x 8-bit control/status optional) Wiring Interface Pluggable spring-force terminals (KS series) Product Advantages (Key Benefits) Hot-Swap Maintenance: The pluggable terminal block allows for the electronic module to be swapped in seconds without rewiring, reducing the risk of wiring errors during service. Compact Integration: Houses two independent high-precision channels in a slim 12mm housing, maximizing space efficiency on the DIN rail. Bipolar Measurement: Capable of measuring both positive and negative voltages, making it versatile for applications involving dual-direction sensors or actuators. Electrical Isolation: High-quality galvanic isolation between the field signals and the internal K-bus protects the CPU and other sensitive components from field-side surges. TwinCAT Integration: Fully compatible with the Beckhoff TwinCAT environment, allowing for easy scaling, filtering, and calibration via software. Precautions (Important Notes) Common Grounding: Ensure that the reference potential (0V) of the analog signal is correctly connected to the terminal’s ground point to avoid measurement offsets caused by floating potentials. Shielding: For signal runs exceeding 3 meters, use shielded twisted-pair cables. The shield should be grounded at the entry point of the control cabinet to minimize electromagnetic interference (EMI). Signal Impedance: Ensure the source device (sensor) has a low enough output impedance to drive the > 200 $k\Omega$ input of the KS3002 without significant voltage drops. K-Bus Power: Calculate the total current consumption on the K-bus. If the total exceeds the capacity of the Bus Coupler (e.g., BK9000), a power feed terminal (KL9110/KL9210) must be added. Product Applications (Typical Use Cases) Position Sensing: Interfacing with linear potentiometers or ultrasonic sensors that output $\pm$10V to indicate position or distance. Speed Control: Monitoring the feedback voltage from tachometers or motor drives in closed-loop velocity control systems. Power Monitoring: Reading voltage signals from power transducers or battery management systems. Process Instrumentation: Connecting to pressure, flow, or temperature transmitters that utilize a voltage output instead of the standard 4-20mA current loop. Joystick/Manual Input: Capturing signals from industrial joysticks used for manual crane or robotic arm manipulation. Shipping Port: Xiamen, China Payment: Bank of Chicago, Bank of Singapore Express cooperation: fedex, DHL, UPS and your express account Service: Professional Sales provides 24 hours /7 days online service Please make an inquiry for more models： ACCURAY 8-061588-002 ADEMCO ADR1600E ADTEC AX-1000-AMII ACCURAY QA-3-017948-003 ADEMCO HRM60N500 ADTRAN 4200663L1 ACCURAY 086370-001 ADEMCO VISTA-250FBP Advanced ICP-16L ACCURAY 086158-004 ADEPT Adept 101 ADVANCED DUO-I8030NM ACCURAY 085221-001 ADEPT AWCII 040 ADVANCED 9R918W3 ACCURAY 061552-001 ADEPT EJI90340-40000 ADVANCED SB1391-C-R-C-A Accu-Sort BoxPC-126M ADEPT SCARA 550 Advanced MN3150272-006 ACME TA-1-81008 ADEPT 10330-11350 Advantech PPC-105T-ABAR ACME TA-1-32406 ADEPT 10332-12350 Advantech FPM-3171G-XCE ACME TA-1-81306 ADEPT ASSY 10350-00100 Advantech WOP-2100T-N2AE ACME T-1-53011 ADEPT ADEPT AWCII 040 ADVANTEST R3265A ACME TA-2-81003 ADEPT AWCII-040 ADVANTEST BLF-022828 ACC-BOARD Acquisition AL81G ADEPT 90402-40013/XY-HRS013-S1B1-AD ADVANTEST BLG-022829 ACS ACS-0400-PS ADEPT 90402-40013 ADVANTEST R6244 ACS SB1381-B-E-R-A-PM2 ADEPT 90400-20055/XY-HRS-055M201 Advantest D3185A ACS SB1381-C-E-R-A ADEPT 90400-02100-EXTB01AD AE RAPID-F ACS SB214ND-F-9 ADEPT 90400-70030 AEG 41-94384 ACS MOTION CONTROL HSSI-I016 ADEPT 90400-71031 AEG M907-122 ACT TCS-SRME-6210-CD-RTM ADEPT 10330-11350 AEG DEP220 ACTION AIOI8100 ADIXEN FM36122 AEG DTA200 ACTUS POWER NPSA-TMTA-222 ADP ADP-1 AEG DTA201 ACUITY 002-PV900 ADRIVE E642B-MGB-K-01 AEG PC-A984-145 ACUITY 010-PV9040 ADTEC 3000III AEG MM-PM22-200 ADC FPL-72RP0W-1448B ADTEC AXR-2000III AEG MM-PM21400C ADDI-DATA APCI-1710 ADTEC AX-2000EUII-N AEG MM-PM21-400 AEG AS-P892-000 AEG M135-H60A-OYOY-G3 AEG PC-E984-381 AEG M344-MKOA-4001 Aerotech U100M-A-40-F5 AEG MM-PM22-300 AEG CGC13-TB AFE DP320T-BC AGIE MJG-2129 AGILENT G2630-66015
