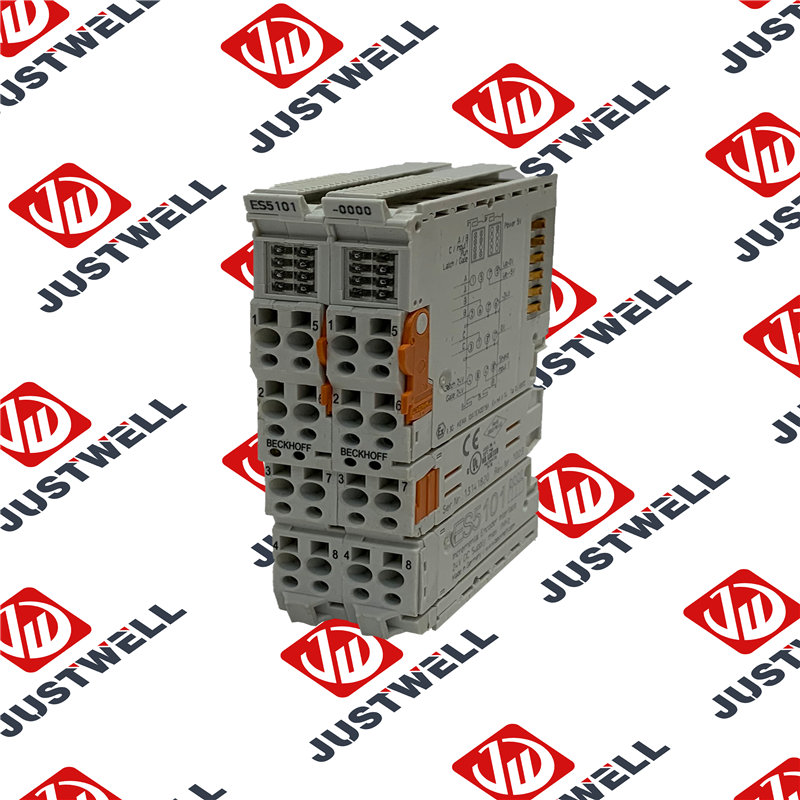

ES5101 Beckhoff EtherCAT Terminal

Description ES5101 Beckhoff EtherCAT Terminal Product Dimensions： Product Description (Detailed Explanation) The ES5101 EtherCAT Terminal is a dedicated interface for the direct connection of incremental encoders with differential signals (RS422) or TTL (single-ended) signals. It functions as a high-speed counter and position-tracking module within the EtherCAT I/O system. This terminal processes quadrature signals ($A, B, C$) to determine position and rotation speed. It supports advanced features such as distributed clocks (DC) for nanosecond-level synchronization and micro-increment interpolation, which allows for much higher position resolution than the physical encoder pulses alone. The ES5101 also provides a 5V DC power supply directly to the encoder, simplifying cabinet wiring. Product Parameters (Technical Specifications) Parameter Category Specification Technology Incremental Encoder Interface Number of Channels 1 Encoder Connection $A, \bar{A}, B, \bar{B}, C, \bar{C}$ (RS422 or TTL) Input Frequency Max. 1 MHz (4 million increments/s with 4-fold evaluation) Counter Size 16-bit or 32-bit (Switchable) Operating Voltage 24V DC (-15% / 20%) Encoder Supply 5V DC / Max. 0.5 A (Internal) Resolution 1/256 bit micro-increments (Interpolated) Additional Inputs 1 x Status (5V), 1 x Gate/Latch (24V) Distributed Clocks Yes (Accuracy < 100 ns) Housing Design Pluggable wiring level (ES series) Product Advantages (Key Benefits) Pluggable Wiring (ES Series): Unlike the standard EL series, the ES5101 allows the module to be swapped while the wiring base remains on the DIN rail, significantly reducing downtime during maintenance. Micro-Increment Support: Provides ultra-fine position resolution by interpolating between physical encoder pulses, enabling smoother motion control in high-speed applications. Nanosecond Synchronization: Utilizing EtherCAT Distributed Clocks (DC), the position data can be synchronized perfectly with other axes or I/O across the entire system. Integrated Power Supply: The module generates the 5V DC encoder power internally from the 24V power contacts, eliminating the need for an external 5V power supply unit. Wire Breakage Detection: Built-in diagnostics can detect open circuits in the encoder cable, preventing “runaway” conditions and enhancing machine safety. Precautions (Important Notes) Shielding: To prevent signal interference in high-frequency applications, use shielded twisted-pair cables for the encoder signals and ensure the shield is connected to the terminal’s ground point. Common Grounding: Ensure that the 24V power supply used for the power contacts (internal bus) is properly referenced to avoid ground loops that could distort the 5V encoder signal. Counter Overflow: When using the 16-bit mode, be mindful of counter overflows in high-speed or long-distance applications. It is recommended to use the 32-bit mode for modern motion control tasks. Latch Function Configuration: The 24V latch input must be correctly configured in the TwinCAT software (e.g., rising vs. falling edge) to ensure the position is captured at the precise moment required. Product Applications (Typical Use Cases) High-Speed Packaging: Tracking the exact position of conveyor belts or rotary knives for precise cutting and placement. CNC Machining: Providing feedback from linear scales or rotary encoders to the controller for high-precision milling and drilling. Synchronized Multi-Axis Motion: Used in systems where multiple motors must move in perfect unison, such as “electronic gearing” applications. Quality Inspection: Triggering cameras or sensors based on the exact physical position of a product on an automated assembly line. Retrofitting Legacy Machines: Upgrading older machines with new EtherCAT control systems while retaining existing 5V TTL or RS422 encoders. Shipping Port: Xiamen, China Payment: Bank of Chicago, Bank of Singapore Express cooperation: fedex, DHL, UPS and your express account Service: Professional Sales provides 24 hours /7 days online service Please make an inquiry for more models： ACCURAY 8-061588-002 ADEMCO ADR1600E ADTEC AX-1000-AMII ACCURAY QA-3-017948-003 ADEMCO HRM60N500 ADTRAN 4200663L1 ACCURAY 086370-001 ADEMCO VISTA-250FBP Advanced ICP-16L ACCURAY 086158-004 ADEPT Adept 101 ADVANCED DUO-I8030NM ACCURAY 085221-001 ADEPT AWCII 040 ADVANCED 9R918W3 ACCURAY 061552-001 ADEPT EJI90340-40000 ADVANCED SB1391-C-R-C-A Accu-Sort BoxPC-126M ADEPT SCARA 550 Advanced MN3150272-006 ACME TA-1-81008 ADEPT 10330-11350 Advantech PPC-105T-ABAR ACME TA-1-32406 ADEPT 10332-12350 Advantech FPM-3171G-XCE ACME TA-1-81306 ADEPT ASSY 10350-00100 Advantech WOP-2100T-N2AE ACME T-1-53011 ADEPT ADEPT AWCII 040 ADVANTEST R3265A ACME TA-2-81003 ADEPT AWCII-040 ADVANTEST BLF-022828 ACC-BOARD Acquisition AL81G ADEPT 90402-40013/XY-HRS013-S1B1-AD ADVANTEST BLG-022829 ACS ACS-0400-PS ADEPT 90402-40013 ADVANTEST R6244 ACS SB1381-B-E-R-A-PM2 ADEPT 90400-20055/XY-HRS-055M201 Advantest D3185A ACS SB1381-C-E-R-A ADEPT 90400-02100-EXTB01AD AE RAPID-F ACS SB214ND-F-9 ADEPT 90400-70030 AEG 41-94384 ACS MOTION CONTROL HSSI-I016 ADEPT 90400-71031 AEG M907-122 ACT TCS-SRME-6210-CD-RTM ADEPT 10330-11350 AEG DEP220 ACTION AIOI8100 ADIXEN FM36122 AEG DTA200 ACTUS POWER NPSA-TMTA-222 ADP ADP-1 AEG DTA201 ACUITY 002-PV900 ADRIVE E642B-MGB-K-01 AEG PC-A984-145 ACUITY 010-PV9040 ADTEC 3000III AEG MM-PM22-200 ADC FPL-72RP0W-1448B ADTEC AXR-2000III AEG MM-PM21400C ADDI-DATA APCI-1710 ADTEC AX-2000EUII-N AEG MM-PM21-400 AEG AS-P892-000 AEG M135-H60A-OYOY-G3 AEG PC-E984-381 AEG M344-MKOA-4001 Aerotech U100M-A-40-F5 AEG MM-PM22-300 AEG CGC13-TB AFE DP320T-BC AGIE MJG-2129 AGILENT G2630-66015
